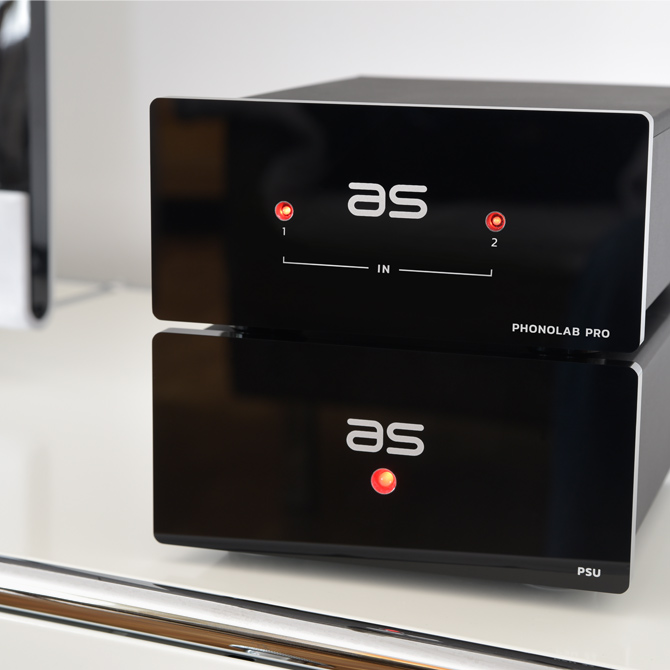

PHONOLAB PRO

audiospecials PHONOLAB Pro
audiospecials PHONOLAB Pro

No matter how authentic a recording, it is the fidelity of its reproduction that will make the sound come true.

This undeniable insight defined our development objectives as we created the PHONOLAB PRO. Components of maximum quality, integrated into a professional solution, deliver an unbiased, high precision, low noise phono experience.

Facts
PHONOLAB Facts
PHONOLAB Facts

Two in One – Two phono amplifiers in one housing

MM and MC – Identical circuit configuration

Genuine A/B comparisons – system, tone arm or turntable

Plug-in modules – MC/MC, MC/MM or MM/MM

Compatible with all systems available in the world market18 input impedances, 10 gain levels

Balanced inputs – mini socket, Lemo standard, optional

RCA and balanced outputs – XLR with transformer

DTA-direct to amp  – Volume control, optional

PRO AUDIO – 24/7 continuous operation

PURE PRO TECHNOLOGY
PHONOLAB TECHNOLOGY
PHONOLAB TECHNOLOGY

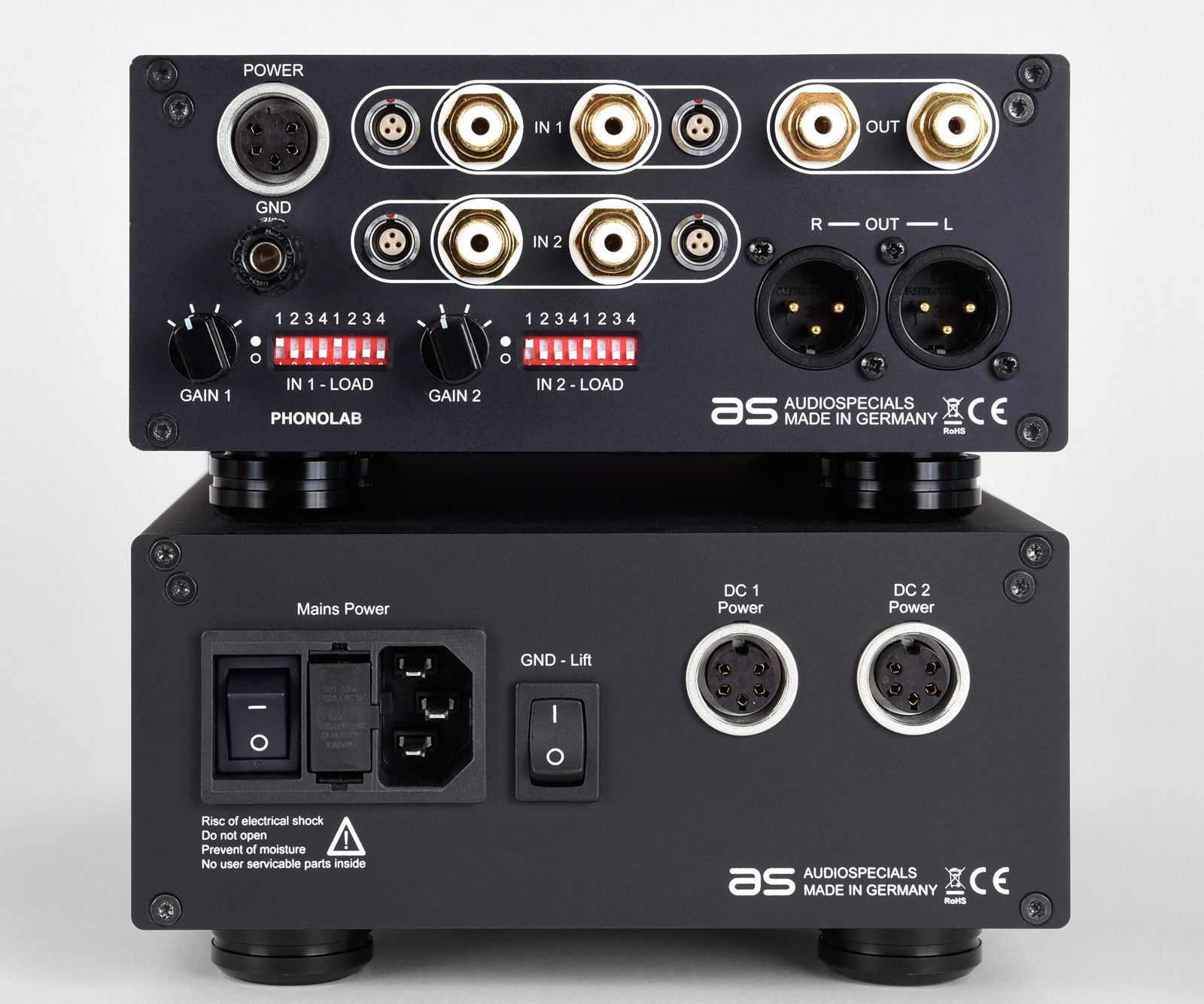

Clearly structured rear panel with INPUT 1 and INPUT 2, GAIN and impedance settings. Outputs are RCA and XLR as standard.

The XLR output is transformer-isolated and can be configured for a signal voltage of 775 mV or 1.55 V (ARD studio standard), respectively.

PHONOLAB Technik Innenansicht
PHONOLAB Technik Innenansicht

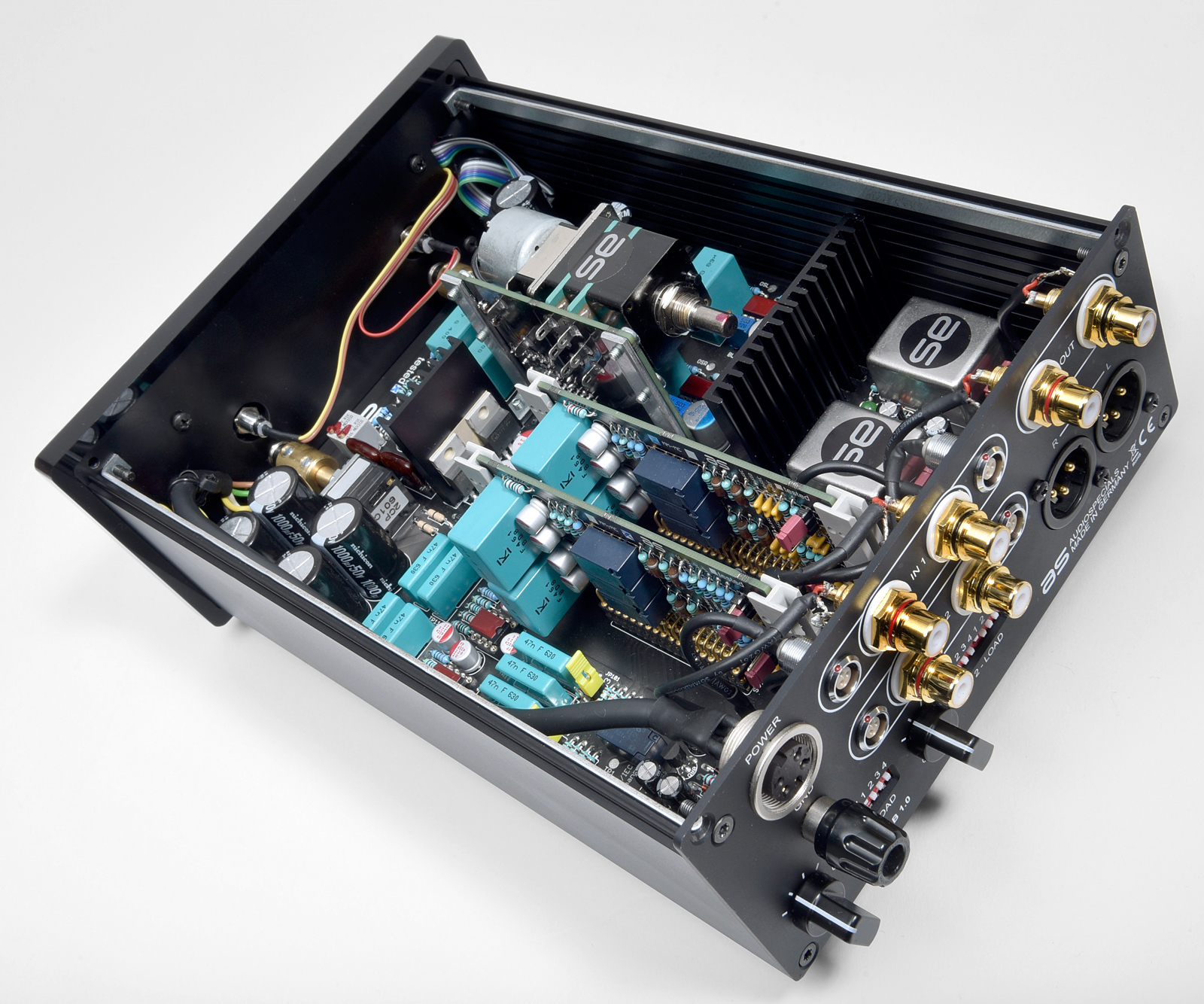

The interior layout relies on modular assembly groups, ensuring ultra-short conductor paths and exceptionally low noise.

Phono modules are designed as plug-in cards for a free choice of MC or MM input types. Cards may also be changed later.

PSU 1.2
PSU 1.2
PSU 1.2

A stable power supply for superior acoustic performance

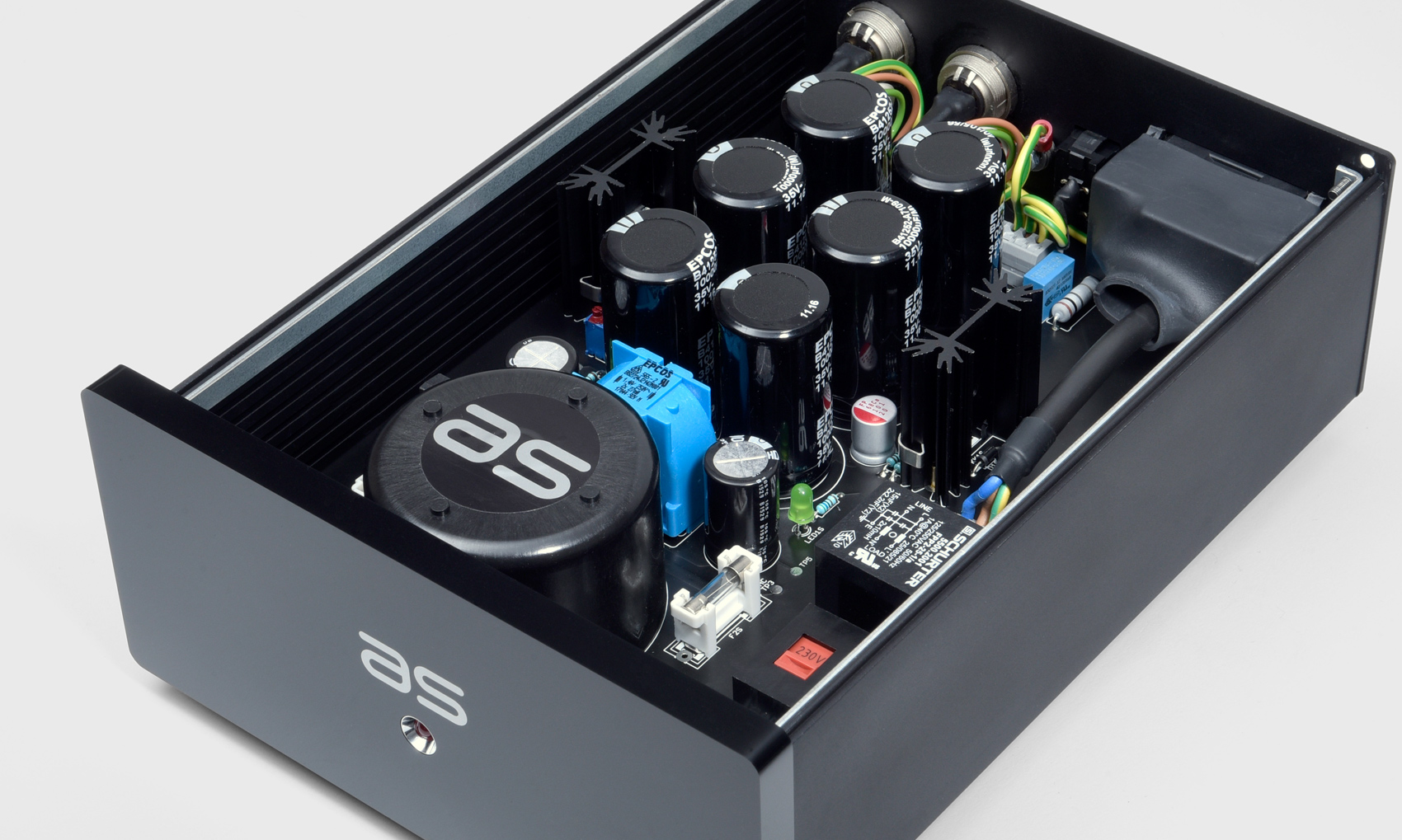

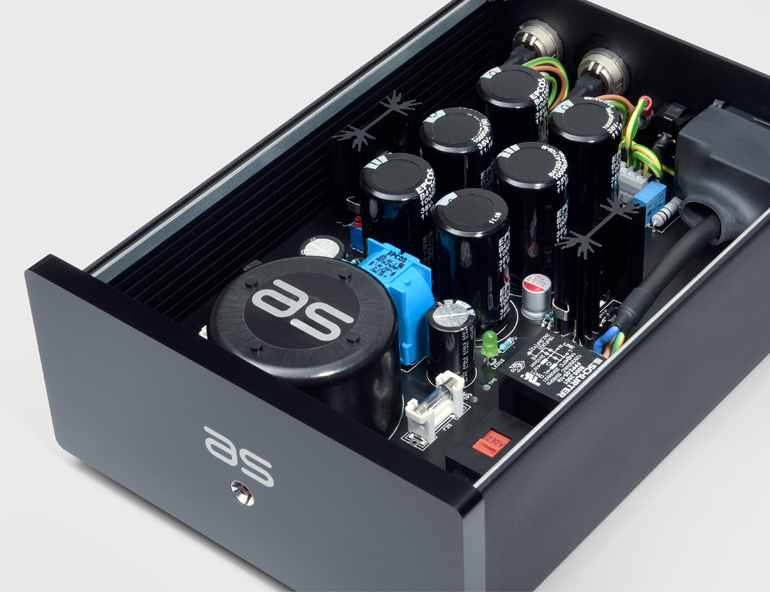

Our PSU 1.2 power source has a capacitance of over 60,000 µF and is built around a potted toroidal transformer with double MU-metal screening. The units can be stacked or placed side by side, depending on space availability.

As the PSU 1.2 comes with two output sockets, it can supply power to two Phonolab 1.0 sets serving a maximum of 4 tone arms. Large turntables with up to 4 tone arms are no rarity among high-end phono enthusiasts.

^
